Product series comparison

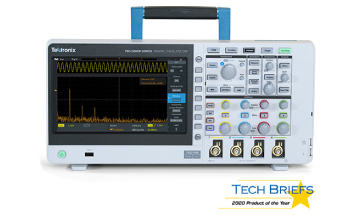

	TBS1000C Digital Storage Oscilloscope Request a Demo	TBS2000B Digital Storage Oscilloscope Request a Demo	MSO/DPO2000B Mixed Signal Oscilloscope Request a Demo	3 Series MDO Mixed Domain Oscilloscope Request a Demo	4 Series MSO Mixed Signal Oscilloscope Request a Demo	5 Series MSO Request a Demo	5 Series MSO Low Profile Request a Demo	6 Series B MSO Request a Demo	6 Series Low Profile Digitizer Request a Demo	MSO / DPO70000 Mixed Signal Oscilloscope Request a Demo	DPO70000SX ATI Performance Oscilloscope Request a Demo	8 Series Sampling Oscilloscope Request a Demo	TDS2000C Digital Storage Oscilloscope Request a Demo	TPS2000B Digital Storage Oscilloscope Request a Demo	MDO3000 Mixed Domain Oscilloscope Request a Demo	MDO4000C Mixed Domain Oscilloscope Request a Demo	MSO/DPO5000B Mixed Signal Oscilloscope Request a Demo	DSA8300 Digital Sampling Oscilloscope Request a Demo
Bandwidth	50 MHz - 200 MHz	70 MHz - 200 MHz	70 MHz - 200 MHz	100 MHz - 1 GHz	200 MHz to 1.5 GHz	350 MHz - 2 GHz	1 GHz	1 GHz - 10 GHz	1 GHz - 8 GHz	8 GHz - 33 GHz	13 GHz - 70 GHz	30 GHz	50 MHz - 200 MHz	100 MHz - 200 MHz	100 MHz - 1 GHz	200 MHz - 1 GHz	350 MHz - 2 GHz	DC - 80 GHz
Analog Channels	2	2-4	2-4	2 or 4	4 or 6	4, 6 or 8	8	4, 6 or 8	4 (SMA)	4	1-4	1-4	2-4	2-4	2 or 4	4	4	Up to 8
Digital Channels	-	-	16 (optional)	16 (optional)	Up to 48 (optional)	Up to 64 (optional)	Up to 64 (optional)	Up to 64 (optional)	-	16 (optional)	-	-	-	-	16 (optional)	16 (optional)	16 (optional)	-
Sample Rate	1 GS/s	1 GS/s to 2 GS/s	1 GS/s	2.5 GS/s - 5 GS/s	6.25 GS/s	6.25 GS/s	6.25 GS/s	50 GS/s	25 GS/s	25 GS/s - 100 GS/s	50 GS/s - 200 GS/s	300 kS/s	500 MS/s - 2 GS/s	1 GS/s - 2 GS/s	2.5 GS/s - 5 GS/s	2.5 GS/s - 5 GS/s	5 GS/s - 10 GS/s	Up to 300 kS/s
Record Length	20k points	5 Mpoints	1M points	10 M	31.25 M to 62.5 M	62.5 M - 500 M	125 M - 500 M	62.5 M - 1 G	125 M - 1 G	31.25M - 1G points	62.5M - 1G point	> 800 M	2.5k points	2.5k points	10 M	20 M	25 M - 125 M	50 - 16,000 points (1M points with IConnect® , 10M points for 80SJNB)
Spectrum Analyzer	Standard Math FFT	Standard Math FFT	Standard Math FFT	Built-in dedicated RF path up to 3 GHz (optional) Standard Math FFT	Spectrum View with integrated digital down converter; Each channel with 312.5 MHz span, 500M span (optional) Standard Math FFT	Spectrum View with integrated digital down converter; Each channel with 312.5 MHz span standard, 500 MHz span (optional) Standard Math FFT	Spectrum View with integrated digital down converter; Each channel with 312.5 MHz span standard, 500 MHz span (optional) Standard Math FFT	Spectrum View with integrated digital down converter; Each channel with 1.25 GHz span standard, 2 GHz span (optional) Standard Math FFT	Spectrum View with integrated digital down converter; Each channel with 1.25 GHz span standard, 2 GHz span optional Standard Math FFT	Standard Math FFT	Standard Math FFT	Standard Math FFT	Standard Math FFT	Standard Math FFT	Built-in dedicated RF path up to 3 GHz Standard Math FFT	Built-in dedicated RF path up to 6 GHz Standard Math FFT	Standard Math FFT	Standard Math FFT
Function Generator Output	-	-	-	1 (optional)	1 (optional)	1 (optional)	1 (optional)	1 (optional)	1 (optional)	-	-	-	-	-	1 (optional)	1 (optional)	-	-
Maximum Waveform Capture Rate	-	10,000 times per second	5,000 wfm/s	>280,000 wfm/s	> 500,000 wfms/s	>500,000 wfms/s	>500,000 wfms/s	>500,000 (Peak Detect, Envelope acquisition mode), >30,000 wfms/s (all other acquisition modes)	>500,000 (Peak Detect, Envelope acquisition mode) >30,000 wfms/s (all other acquisition modes)	>300,000 wfms/s	>300,000 wfms/s	Record Length / 300 kS/s	-	-	>235,000 - >280,000 wfm/s	>270,000 - >340,000 wfm/s	>250,000 wfms/s	300 kS/s ÷ Record Length
RF Channels	-	-	-	1 (optional)	-	-	-	-	-	-	-	-	-	-	1	1	-	-
RF Frequency Range	-	-	-	9 kHz to 1 GHz or 3 GHz (optional)	Spectrum View DC to bandwidth of scope (-3dB)	Spectrum View DC to bandwidth of scope (-3dB)	Spectrum View DC to bandwidth of scope (-3dB)	Spectrum View DC to bandwidth of scope (-3dB)	Spectrum View DC to bandwidth of scope (-3dB)	-	-	-	-	-	9 kHz - 1 GHz (up to 3 GHz optional)	9 kHz – 3 GHz/ 6 GHz (optional)	-	-
Trigger Types	Edge, Pulse Width, Runt, Line	Edge, Pulse Width, Runt	Edge, Pulse Width, Runt, Logic, Setup and Hold, Rise/Fall Time, Video, Parallel, I2C, SPI, CAN, RS-232/422/485/UART, LIN	Edge Logic Parallel (optional) Pulse Width Rise/Fall Time Runt Serial Bus (optional) Sequence Setup and Hold Timeout Video	Edge Glitch Pattern Pulse Width Runt Serial Bus (optional) Setup/Hold State Timeout Transition Window Video (optional) Visual Trigger RF Frequency vs Time (optional) RF Magnitude vs Time (optional)	Edge Glitch Pattern Pulse Width Runt Serial Bus (optional) Setup/Hold State Timeout Transition Window Video (optional) Visual Trigger RF Frequency vs Time (optional) RF Magnitude vs Time (optional)	Edge Glitch Pattern Pulse Width Runt Serial Bus (optional) Setup/Hold State Timeout Transition Window Video (optional) Visual Trigger	Edge Glitch Pattern Pulse Width Runt Serial Bus (optional) Setup/Hold State Timeout Transition Window Video (optional) Visual Trigger RF Frequency vs Time (optional) RF Magnitude vs Time (optional)	Edge Glitch Pattern Pulse Width Runt Serial Bus (optional) Setup/Hold State Timeout Transition Window Video (optional) Visual Trigger	Comm, Bus, I2C, SPI, CAN, LIN, Flexray, RS-232/422/485/UART, USB, Edge, B Event Scan, Glitch, Pattern, Runt, Serial Pattern, Setup/Hold, State, Timeout, Transition, Visual, Width, Window	Edge, B Event Scan, Glitch, Pattern, Runt, Setup/Hold, State, Timeout, Transition, Visual, Width, Window	Clock Prescale Input	Edge, Video, Pulse Width, Glitch	Edge, Video, Pulse Width, Glitch	Edge Logic Parallel Pulse Width Rise/Fall Time Runt Sequence Serial Bus (optional) Setup /Hold Timeout Video	Edge Logic Parallel Pulse Width RF (optional) Rise/Fall Time Runt Sequence Serial Bus (optional) Setup/Hold Timeout Video	Edge Glitch Pattern Pulse width Runt Serial Bus (optional) Setup/Hold State Timeout Transition Video Visual Trigger	Clock Input/Prescale, TDR Clock, Clock RecoveryTriggers from Modules, Trigger Direct Input, Phase Reference timebase supports acquisitions without a trigger signal in its Free Runmode
Optional Analysis	-	-	Automotive Serial Triggering and Analysis Module (DPO2AUTO), Computer Serial Triggering and Analysis Module (DPO2COMP), Embedded Serial Triggering and Analysis Module (DPO2EMBD)	I²C/SPI decode I²S/LJ/RJ/TDM decode RS-232/422/485/UART decode CAN/LIN/FlexRay decode MIL-STD-1553/ARINC 429 decode Power analysis USB2.0 decode	1-Wire decode 3-phase power analysis Advanced Power analysis CAN/LIN/FlexRay decode Ethernet decode eUSB2 decode I2C/SPI decode I2S/ LJ/RJ/TDM decode I3C decode Manchester decode MDIO decode MIL-STD-1553/ARINC 429 decode NRZ decode PSI5 decode RS-232/422/485/UART decode SDLC decode SENT decode Spacewire decode Spectrum View spectrum analysis SPMI decode SVID decode USB 2.0 (LS/FS/HS)	1-Wire decode 8b10b decode 10BASE-T1L compliance 10BASE-T1S compliance Advanced Jitter analysis Advanced Power analysis Automotive Ethernet compliance CAN/LIN/FlexRay decode Ethernet compliance Ethernet decode eUSB2 decode I2C/SPI decode I2S/LJ/RJ/TDM decode I3C decode IMDA analysis IMDA DQ0 measurements Manchester decode MDIO decode MIL-STD-1553/ARINC 429 decode MIPI C-PHY decode MIPI D-PHY (CSI/DSI) decode NRZ decode PSI5 decode RS-232/422/485/UART decode SDLC decode SENT decode Spacewire decode SPMI decode SVID decode USB 2.0 decode USB 2.0 compliance Vector signal analysis	1-Wire decode 8b10b decode Advanced Jitter analysis Advanced Power analysis CAN/LIN/FlexRay decode Ethernet decode eUSB2 decode I2C/SPI decode I2S/LJ/RJ/TDM decode I3C decode Manchester decode MDIO deocde MIL-STD-1553/ARINC 429 decode MIPI C-PHY decode MIPI D-PHY (CSI/DSI) decode NRZ decode PSI5 decode RS-232/422/485/UART decode SDLC decode SENT decode Spacewire decode SPMI decode SVID decode USB 2.0 decode	1-Wire decode 2.5 and 5GBASE-T compliance 8b10b decode 10BASE-T1L compliance 10BASE-T1S compliance 10GBASE-T compliance Advanced Jitter analysis Advanced Power analysis Automotive Ethernet Compliance CAN/LIN/FlexRay decode DDR3/LPDDR3 analysis Ethernet decode Ethernet compliance eUSB2 decode I2C/SPI decode I2S/LJ/RJ/TDM decode I3C decode IMDA analysis IMDA DQ0 measurements Manchester decode MDIO decode MIL-STD-1553/ARINC 429 decode MIPI C-PHY 2.0 conformance MIPI D-PHY 1.2 compliance MIPI D-PHY 2.1 compliance MIPI C-PHY 2.0 (CSI/DSI) decode MIPI D-PHY (CSI/DSI) decode NRZ decode PSI5 decode RS-232/422/485/UART decode SENT decode Spacewire decode SPMI decode SVID decode USB 2.0 decode USB 2.0 compliance Vector signal analsyis	1-Wire decode 2.5 and 5GBASE-T compliance 8b10b decode 10BASE-T1L compliance 10BASE-T1S compliance 10GBASE-T compliance Advanced Jitter analysis Advanced Power analysis Automotive Ethernet compliance CAN/LIN/FlexRay decode DDR3/LPDDR3 analysis Ethernet compliance Ethernet decode eUSB2 decode I2C/SPI decode I2S/LJ/RJ/TDM decode I3C decode MDIO decode MIL-STD-1553/ARINC 429 decode MIPI C-PHY decode MIPI D-PHY 1.2 compliance MIPI D-PHY (CSI/DSI) decode NRZ decode PSI5 decode RS-232/422/485/UART decode SENT decode Spacewire decode SPMI decode SVID decode USB 2.0 decode	MIPI® D-PHY Testing (D-PHY), DDR Memory Bus Analysis (DDRA), DPOJET Jitter And Eye Diagram Analysis (DJA), DisplayPort 1.2 Source Test Automation (DP12), Ethernet Compliance Test Solution (ET3), HDMI Compliance Test Solution (HT3), HSIC Electrical Validation and Protocol Decode (HSIC), MHL Advanced Analysis and Compliance Test (MHD), MOST Electrical Compliance and Debug (MOST), MIPI M-PHY Transmitter Debug, Characterization and Compliance Test (M-PHY), PCI Express Transmitter Compliance and Debug (PCE3), SAS 12 Gb/s Test (SAS3), Serial Data Link Analysis Solution Software (SLE, SLA), SFP+ Compliance and Debug (SFP-TX), SignalVu Vector Signal Analysis Software (SVE), Thunderbolt TX Compliance Test (TBT-TX), USB 2.0 Compliance Test Solution (USB), USB 3.0 Transmitter Test (USB3)	DPOJET Jitter and Eye Diagram Analysis (DJA), Serial Data Link Analysis Visualizer (SDLA64), SignalVu Vector Signal Analysis (SVE)	Optical PAM4 (PAM4-O)	-	Power Measurements Application Package (TPS2PWR1), WaveStar Application Software (WSTRO)	CAN/LIN decode FlexRay decode I²C/SPI decode I²S/LJ/RJ/TDM decode Limit and Mask Testing Power analysis MIL-STD-1553 decode RS-232/422/485/UART decode USB decode	CAN/LIN decode CAN/LIN/FlexRay decode Ethernet decode I²C/SPI decode I²S/LJ/RJ/TDM decode HDTV Video Limit and Mask Testing MIL-STD-1553 decode Power analysis RS-232/422/485/UART decode USB decode	Advanced Power analysis BroadR-Reach compliance CAN/LIN/FlexRay decode DDR analysis Ethernet compliance Ethernet decode I²C/SPI decode Jitter analysis Noise, jitter, and eye analysis Mask Testing MIL-STD-1553 decode MIPI® D-PHY decode MOST compliance RS-232/422/485/UART decode SignalVu Vector Signal Analysis USB 2.0 compliance USB 2.0 decode USB HSIC decode USB power compliance	IConnect® S-Parameters (80SSPAR), IConnect®Signal Integrity and Failure Analysis (80SICON), IConnect® andMeasureXtractor™ Signal Integrity (80SICMX), Jitter/Noise/BERAnalysis (80SJARB and 80SJNB)
Vertical Accuracy	-	3%	-	±1.5%	±1%	±1%	±1%	±1%	50 Ω: ±1.0% of full scale, (±2.0% of full scale at 1mV/div)	±2%	±2%	-	-	-	±1.5%	±1.5%	±1.5%	-
Automated Measurements	32	32 and FFT function for thorough waveform analysis	29	-	-	-	-	-	-	53	53	-	-	-	-	-	-	-
No. Of Application Modules Range	-	-	3	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Rise Time	7.0 ns - 2.1 ns	3.5ns~5ns	2.1 ns - 5 ns	4000 ps to 400 ps (100 MHz to 1 GHz)	2.3 ns to 450 ps (200 MHz to 1.5 GHz)	175 ps - 1 ns	350 ps	400 ps - 40 ps (1 GHz - 10 GHz)	400 ps - 50 ps (1 GHz - 8 GHz)	9 ps - 98 ps	<6ps - 13ps	Determined by sampling module	5.83 ns - 2.1 ns	3.5 ns - 2.1 ns	400 ps - 4 ns	175 ps - 3.5 ns	175 ps - 1 ns	Determined by the sampling modules used
Display	7-inch(178mm) WVGA color display	9 inch TFT WVGA	7 in. (180 mm), Color	11.6 inches, 1920 x 1080 HD	13.3 in, 1920x1080 HD	15.6 in, 1920x1080 HD	-	15.6 in, 1920x1080 HD	-	12.1 in (308 mm), Color	6.5 in (165 mm), Color	-	5.7 in. (145 mm), Color	5.7 in. (145 mm), Color	9 in. (229 mm), Color	10.4 in. (264 mm), Color	10.4 in. (264 mm), Color	10.4 in. (265 mm), Color
Warranty	5-year Warranty	5 years	Five-year Warranty	3 years	3 years	3 years	3 years	1 year	1 year	One-year Warranty	One-year Warranty	One-year Warranty	Lifetime Warranty	Three-year Warranty	3 years	3 years	1 year	One-year Warranty
SA Real Time Capture Bandwidth	-	-	-	1 GHz (optional), 3 GHz (optional)	Spectrum View: 312.5 MHz, 500 MHz (optional)	Spectrum View: 312.5 MHz, 500 MHz (optional)	Spectrum View: 312.5 MHz, 500 MHz (optional)	Spectrum View: 1.25 GHz, 2 GHz (optional)	Spectrum View: 1.25 GHz, 2 GHz (optional)	-	-	-	-	-	Up to 3 GHz	Up to 3.75 GHz	-	-
Starting Price	US $510	US $1,370	US $1,570	US $3,850	US $7,550	US $14,900	Contact Us	US $26,500	Contact Us	Contact Us	Contact Us	Contact Us	US $2,320	US $4,560	US $4,050	US $8,190	US $19,500	Contact Us

Explore our oscilloscope range. From everyday bench scopes to real-time, high-performance scopes.

Performance Real-Time Oscilloscopes

Oscilloscope Probes and Accessories

Choose from a broad portfolio of Tektronix probes and accessories, all perfectly matched to our industry-leading oscilloscopes. With over 100 choices available, select the oscilloscope probe you need for your specific testing application.

Current Probes

Best-in-class bandwidth and sensitivity. Safety Certified.

Low Voltage Differential Probes

Signal fidelity for serial bus PHY measurements.

High Voltage Differential Probes

Industry leading performance up to 6000V. Safety Certified.

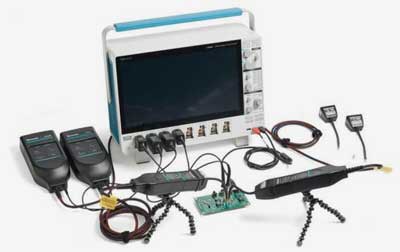

IsoVu Isolated Probes

Probing systems make high-resolution measurements in the presence of common mode signals or noise.

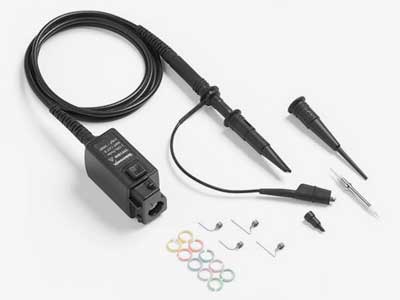

Passive Probes

Highest bandwidth, lowest probe loading.

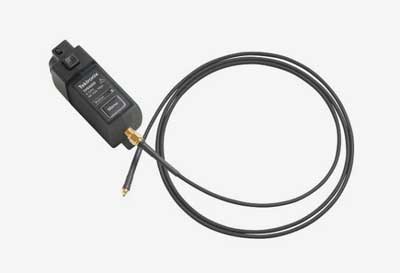

Power Rail Probes

Power rail probes offer low noise, low loading, high bandwidth, and high DC offset specifically for power integrity measurements.

View More Probes and Accessories

Software for your Oscilloscope

Analyze your most challenging system designs by adding one of our 30+ packages to your oscilloscope.

View More Options

Analysis Software for Oscilloscopes

Automate your testing, simplify execution, and speed evaluation of your most challenging system designs using Tektronix software. Learn more about our oscilloscope software packages.

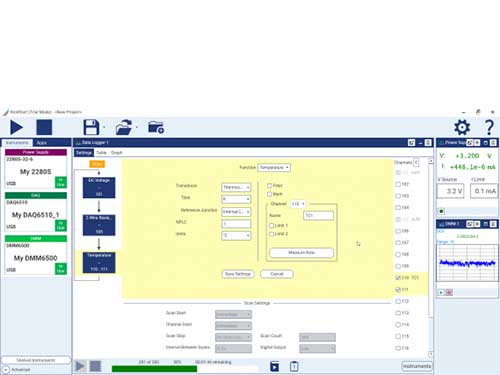

Keithley KickStart Software

Start measuring in minutes without complex programming. Perform I-V characterization and more.

View More Options

Oscilloscope Learning Center

Learn how to use oscilloscopes, spectrum analyzers, source measure units, and other instruments to troubleshoot system anomalies, provide measurement insights, debug EMI, and more.

Primer

Oscilloscope Basics and Fundamentals

In this comprehensive primer, you can learn everything you need to know about oscilloscope fundamentals, types, systems, setup, and use.

SOLUTION BRIEF

Capacitance and Inductance Measurements Using an Oscilloscope and a Function Generator

Learn about impedance, impedance measurement methods, measurement ranges, and more with real-world examples.

APPLICATION NOTE

Spectrum View: A New Approach to Frequency Domain Analysis on Oscilloscopes

Learn about how Spectrum View analysis allows optimization of both time domain and frequency domain displays independently to offer important insights.

APPLICATION NOTE

How Oscilloscope Probes Affect Your Measurement

Learn how an oscilloscope probe changes the signal you’re measuring at the test point and what probing specifications to look for to minimize probing effects.

Learn More

Oscilloscope FAQs

What is an oscilloscope?

An oscilloscope graphically displays electrical signals and shows how they change over time. Learn more about how an oscilloscope works, what they're used for and the types of oscilloscopes.

How to choose an oscilloscope

There are many factors to consider when buying an oscilloscope. Learn more in our guide on how to choose the best oscilloscope for your application.

How to use an oscilloscope

Learn the basics of how to set up and how to use an oscilloscope as well as basic measurement techniques with our Oscilloscope How-To Guide.

What does an oscilloscope measure

An oscilloscope measures voltage waves, but it can also be used to measure current, resistance, sound, capacitance, frequency and more.

"We couldn't find equipment capable of making measurements such as the high-side gate-source voltage. In fact, most differential signals in the presence of today’s higher frequency common mode
voltages cannot be measured accurately. That’s when Tektronix stepped in.”

Giovanni Franceschini, Professor, University of Modena and Reggio Emilia(UniMoRe)

Oscilloscope

Compare and choose the best oscilloscope for your use

TBS1000C Digital Storage Oscilloscope

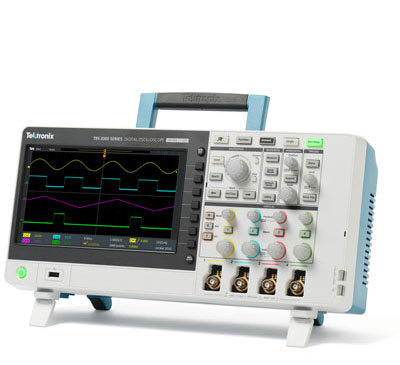

TBS2000B Digital Storage Oscilloscope

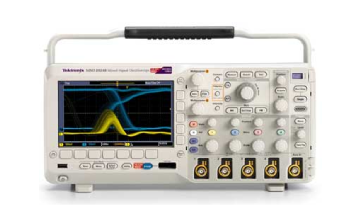

MSO/DPO2000B Mixed Signal Oscilloscope

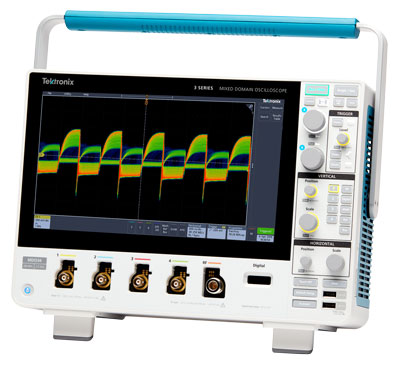

3 Series MDO Mixed Domain Oscilloscope

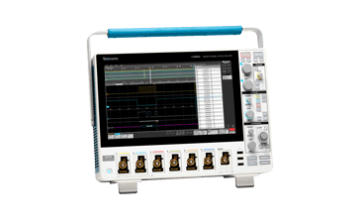

4 Series MSO Mixed Signal Oscilloscope

5 Series MSO Mixed Signal Oscilloscope

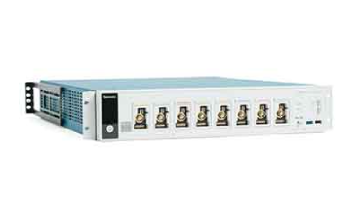

5 Series MSO Low Profile

6 Series B MSO Mixed Signal Oscilloscope

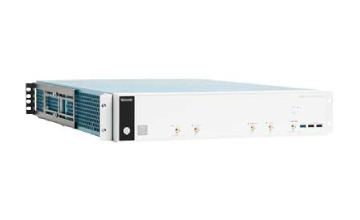

6 Series Low Profile Digitizer

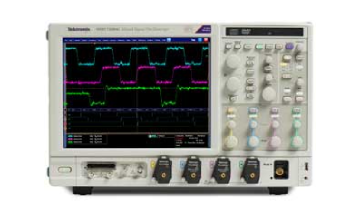

MSO / DPO70000 Mixed Signal Oscilloscope

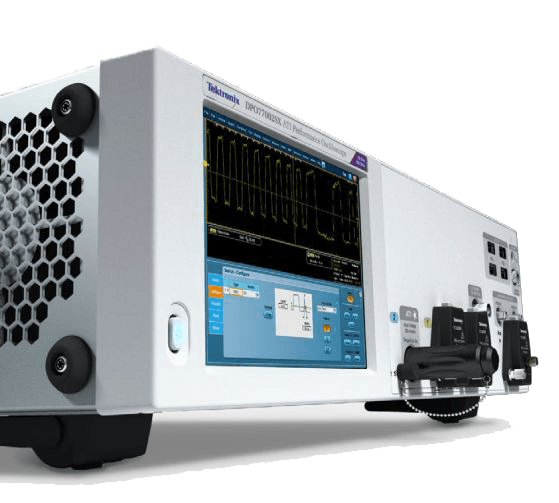

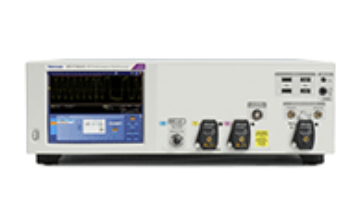

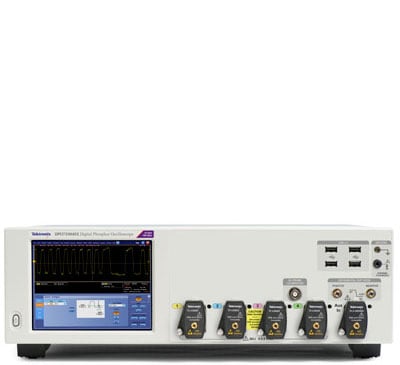

DPO70000SX ATI Performance Oscilloscope

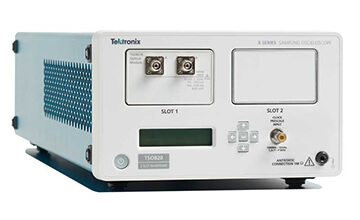

8 Series Sampling Oscilloscope

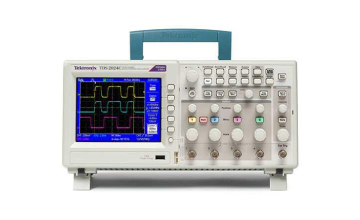

TDS2000C Digital Storage Oscilloscope

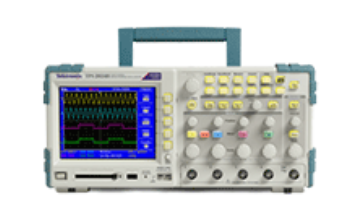

TPS2000B Digital Storage Oscilloscope

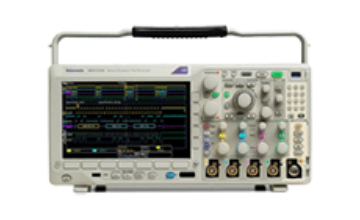

MDO3000 Mixed Domain Oscilloscope

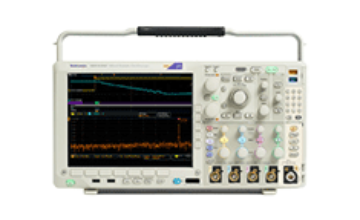

MDO4000C Mixed Domain Oscilloscope

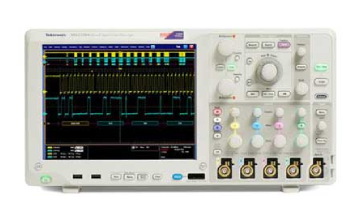

MSO/DPO5000B Mixed Signal Oscilloscope

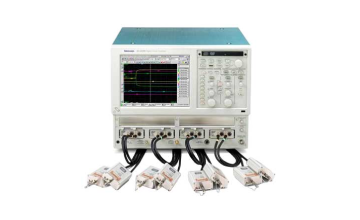

DSA8300 Digital Sampling Oscilloscope
