With a remarkably innovative pinch-swipe-zoom touchscreen user interface, the industry's largest high-definition display, and 4, 6, or 8 FlexChannel™ inputs that let you measure one analog or eight digital signals, the 5 Series MSO is ready for today’s toughest challenges, and tomorrow’s too. It sets a new standard for performance, analysis, and overall user experience. See all oscilloscopes »
Up to 2 GHz
Up to 125 Mpoints
4 or 6 or 8
Up to 64
Get the big picture and take total control, with the 15.6 HD touchscreen display. Use the capacitive pinch-zoom-swipe touchscreen, front panel controls, or mo="1"use to analyze and manage multiple signals without fighting through menus.
Available with 4, 6, or 8 FlexChannel inputs. Each can be used to look at 1 analog signal or look at 8 digital logic signals, just by changing the probe. Display any analog signal as a high-resolution waveform, a spectrum, or both at the same time, with independent acquisition controls for ea="1"ch domain.
Learn how to expand visibility with FlexChannel Inputs
12-bit analog to digital converters deliver up to 16 bits of vertical resolution using advanced digital signal processing. See and measure small signal details, even if they're riding on large signals.
Performance
Digital Inputs
Operating System
Signal Generation
Advanced Analysis
NEW Options
Free upgrades on instruments with advanced analysis options
Free upgrade on all instruments
Already have a 5 Series? Get your update.
8-channel MSO58 model
shown
We have the only plan in the industry to offer coverage for accidental damage. Yes, this includes screen damage, spills, broken mounts, and electrostatic discharge or electronic overstress events. Reduce unplanned repair or replacement costs with our Total Protection Plan. Watch the video or click below to learn more.
| Model | Analog Bandwidth | Sample Rate | Record Length | Analog Channels | Digital Channels | Function Generator Output | List Price |
|---|---|---|---|---|---|---|---|
| MSO54 | 350 MHz - 2 GHz | 6.25 GS/s | 62.5 Mpoints - 125 Mpoints | 4 | Up to 32 (optional) |
1 (optional) |
US $14,100 Configure & Quote |
| MSO56 | 350 MHz - 2 GHz | 6.25 GS/s | 62.5 Mpoints - 125 Mpoints | 6 | Up to 48 (optional) |
1 (optional) |
US $17,600 Configure & Quote |
| MSO58 | 350 MHz - 2 GHz | 6.25 GS/s | 62.5 Mpoints - 125 Mpoints | 8 | Up to 64 (optional) |
1 (optional) |
US $23,600 Configure & Quote |
| Model | Analog Bandwidth | Sample Rate | Record Length | Analog Channels | Digital Channels | Function Generator Output | List Price |
|---|---|---|---|---|---|---|---|
| MSO54 | 350 MHz - 2 GHz | 6.25 GS/s | 62.5 Mpoints - 125 Mpoints | 4 | Up to 32 (optional) |
1 (optional) |
US $14,100 Configure & Quote |
| MSO56 | 350 MHz - 2 GHz | 6.25 GS/s | 62.5 Mpoints - 125 Mpoints | 6 | Up to 48 (optional) |
1 (optional) |
US $17,600 Configure & Quote |
| MSO58 | 350 MHz - 2 GHz | 6.25 GS/s | 62.5 Mpoints - 125 Mpoints | 8 | Up to 64 (optional) |
1 (optional) |
US $23,600 Configure & Quote |
| Tektronix 5 Series MSO |
Tektronix MSO/DPO5000B |
Keysight S-Series |
LeCroy HDO6000A/HDO8000A |
Rohde & Schwarz RTO2000 |
Yokogawa DLM4000 Series |
|
|---|---|---|---|---|---|---|
| Detailed Comparison | -- | -- | Fact Sheet | Fact Sheet | Fact Sheet | Fact Sheet |
| Bandwidth | 350 MHz to 2 GHz | 350 MHz to 2 GHz | 500 MHz to 8 GHz | 350 MHz to 1 GHz | 600 MHz to 6 GHz | 350 MHz, 500 MHz |
| Upgradeable Bandwidth | Yes | No | Yes | No | Yes | No |
| Analog Channels | 4, 6, or 8 | 4 | 2 or 4 | 4 or 8 | 2 or 4 | 8 |
| Analog Sample Rate (All Channels) | Up to 6.25 GS/s | Up to 5 GS/s | Up to 10 GS/s | Up to 2.5 GS/s | Up to 10 GS/s | 2.5 GS/s |
| Standard Record Length (All Channels) | 62.5 M | 25 M | 50 M | 50 M | 50 M | 25 M |
| Integrated Arbitrary/Function Generator | 50 MHz (opt.) | -- | -- | -- | 100 MHz (opt.) | -- |
| Digital Channels (MSO) | Up to 64 (opt.) | 16 (opt.) | 16 (opt.) | 16 (opt.) | 16 (opt.) | 8 (std) / 24 (opt) |
| ADC Resolution | 12-bits | 8-bits | 10-bits | 12-bits | 8-bits | 8-bits |
| Waveform Capture Rate | >500,000 wfms/sec | 250,000 wfms/sec | <1,100 wfms/sec | <700 wfms/sec | 1,000,000 wfms/sec | N/A |
| Operating System | Closed Linux Open Windows (opt.) |
Open Windows | Open Windows | Open Windows | Open Windows | Closed |
| Standard Probes | Up to 1 GHz Passive < 3.9 pF Loading |
Up to 1 GHz Passive < 3.9 pF Loading |
500 MHz Passive 9.5 pF loading |
500 MHz Passive 10 pF loading |
500 MHz Passive 10 pF loading |
500 MHz 10.5 pF loading |
| Standard Warranty | 3 years | 1 year | 3 years | 3 years | 3 years | ? |
Automatic serial bus decoding saves time and eliminates errors versus hand decoding. Serial bus triggering and search enable you to isolate events for system-level troubleshooting.
Highlights
Car designers rely on serial buses for error-free communications between ECUs, sensors and actuators. They can also rely on the 5 Series MSO, equipped with CAN, CAN FD, LIN, FlexRay, and SENT decoding and triggering to be able to get a synchronized view of their systems. The automated Automotive Ethernet compliance suite lets you test to the standard, without becoming high speed bus expert.
Learn how CAN, CAN FD, LIN and FlexRay decoding and triggering speed debug
Clocks are the heart of every embedded system and digital communication link. Jitter and other clock distortion can impact system operation, and getting to the root cause can be challenging without the right analysis tools.
Highlights
Make reliable, repeatable power quality, harmonics, switching loss, safe operating area measurements and more with the automated power measurement and analysis package. With up to 8 high-resolution channels and a wide range of available probes, the 5 Series MSO is also ideal for evaluating power supply sequencing, and digging into 3-phase power converters.
Highlights
Learn how to make automated switching loss measurements, harmonics measurements, and more
Learn how more channels simplify power supply sequencing
Learn how to decode and trigger on the SPMI power management bus

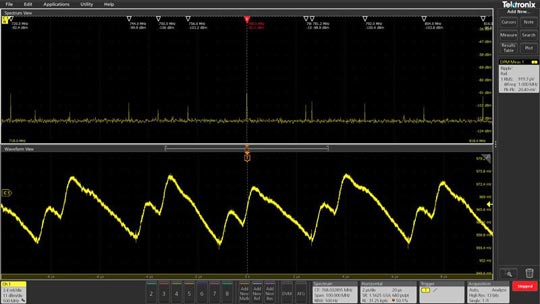

Today’s boards can have 20 or more power rails. Most of these are less than a few volts and have strict noise limits. Accurate measurements demand special attention.
Highlights
| Data Sheet | Software Package / Software Option | Description | Configure and Quote |
|---|
| Upgrade | Description | Purchasing Details |
|---|---|---|
| TLP058 Logic Probe | Each probe accesses 8 digital channels on any FlexChannel for any 5 Series MSO | Request a quote on this probe |
| Upgrade | Description | Purchasing Details |
|---|---|---|
| SUP5-AFG | Add arbitrary function generator | Request trial license Request a quote |
| SUP5-DVM | Add digital voltmeter / trigger frequency counter | Software upgrade license file provided upon registration. Register now. |
| SUP5-RL-125M | Extend record length to 125 Mpts / channel | Request trial license Request a quote |
| SUP5-WIN | Add removable solid state drive with Windows 10 license installed. | No trial available Request a quote |
| Upgrade | Description | Purchasing Details |
|---|---|---|
| SUP5-SR8B10B | 8b10b Protocol Decoder and Search | Request trial license Request a quote |
| SUP5-SRAERO | Aerospace serial triggering and analysis (MIL-STD-1553, ARINC429) | Request trial license Request a quote |
| SUP5-SRAUDIO | Audio serial triggering and analysis (I2S, LJ, RJ, TDM) | Request trial license Request a quote |
| SUP5-SRAUTO | Automotive serial triggering and analysis (CAN, CAN FD, LIN, FlexRay) | Request trial license Request a quote |
| SUP5-SRAUTOEN1 | 100BASE-T1 automotive Ethernet protocol decode software | Request trial license Request a quote |
| SUP5-SRAUTOSEN | Automotive sensor serial triggering and analysis (SENT) | Request trial license Request a quote |
| SUP5-SRCOMP | Computer serial triggering and analysis (RS-232/422/485/UART) | Request trial license Request a quote |
| SUP5-SREMBD | Embedded serial triggering and analysis (I2C, SPI) | Request trial license Request a quote |
| SUP5-SRENET | Ethernet serial triggering and analysis (10Base-T, 100Base-TX) | Request trial license Request a quote |
| SUP5-SRI3C | MIPI I3C decoding and analysis | Request trial license Request a quote |
| SUP5-SRNRZ | NRZ Protocol Decoder and Search | Request trial license Request a quote |
| SUP5-SRPM | Power Management serial triggering and analysis (SPMI) | Request trial license Request a quote |
| SUP5-SRPSI5 | PSI5 serial decode and analysis | Request trial license Request a quote |
| SUP5-SRSPACEWIRE | SpaceWire protocol decoding and analysis | Request trial license Request a quote |
| SUP5-SRUSB2 | USB 2.0 serial bus triggering and analysis (LS, FS, HS) (≥ 1 GHz model recommended for HS) | Request trial license Request a quote |
| Upgrade | Description | Purchasing Details |
|---|---|---|
| SUP5-CMAUTOEN | Automotive Ethernet (100Base-T1 and 1000BASE-T1) automated compliance test solution | Request trial license Request a quote |
| SUP5-CMUSB2 | USB 2.0 automated pre-compliance test solution | Request trial license Request a quote |
| SUP5-CMENET | Ethernet (10/100/1000BASE-T) compliance test solution | Request trial license Request a quote |
| SUP5-DBLVDS | Automated LVDS test solution for 5 Series MSO oscilloscopes | Request trial license Request a quote |
| SUP5-AUTOEN-BND | Automotive Ethernet Compliance, Signal Separation, PAM3 Analysis, 100BASE-T1 Decode software | Request trial license Request a quote |
| SUP5-AUTOEN-SS | Signal Separation Solution (Min BW 1 GHz) using TekExpress Automation Platform | Request trial license Request a quote |
| SUP5-CMINDUEN10 | Industrial Ethernet (10Base-T1L Long reach) automated compliance test solution | Request trial license Request a quote |
| SUP5-PAM3 | PAM3 Automated Compliance Solution (Min BW 1 GHz) using TekExpress Automation Platform | Request trial license Request a quote |
| Upgrade | Description | Purchasing Details |
|---|---|---|
| SUP5-DPM | Complete Digital Power Management Analysis and debug solution (Includes all measurements in DPMBAS + Jitter Analysis and Eye Diagram Analysis) | Request trial license Request a quote |
| SUP5-DPMBAS | Basic Digital Power Management Analysis and Debug Solution (includes Power Sequence Analysis, Transient Analysis and Ripple Analysis) | Request trial license Request a quote |
| SUP5-DJA | Advanced jitter and eye analysis | Request trial license Request a quote |
| SUP5-IMDA | Inverters, motors and drives analysis | Request trial license Request a quote |
| SUP5-MTM | Mask and limit testing | Request trial license Request a quote |
| SUP5-PWR | Power analysis | Request trial license Request a quote |
| SUP5-SV-BW-1 | Spectrum View Capture Bandwidth to 500 MHz | Request trial license Request a quote |
| SUP5-SV-RFVT | Spectrum View RF versus Time Analysis | Request trial license Request a quote |
| SUP5-VID | Analog video trigger (NTSC, PAL, SECAM) | Request trial license Request a quote |
| Upgrade | Description | Purchasing Details |
|---|---|---|
| SUP5-BWxTy8 | MSO58 bandwidth upgrade from x to y, where x and y are the hundreds of MHz |
|
| SUP5-BWxTy6 | MSO56 bandwidth upgrade from x to y, where x and y are the hundreds of MHz | |
| SUP5-BWxTy4 | MSO54 bandwidth upgrade from x to y, where x and y are the hundreds of MHz |
